Flexible and Cost-effective Pop-up Diverter For Sorting Applications
Industry Applications
APOLLO Pop-up diverter is used to quickly and efficiently divert product from a main line conveyor onto branch line. It can be integrate seamlessly into new and reconditioned conveyors. With the capacity to smoothly and swiftly divert a large range of packages, it can be used in many applications and industries (distribution or logistic centers, parcel and postal, manufacturing etc.
● Available options with 30° or 45°
● Available Left/Right transfer
● Transfer on wheels
● Powered by motorised rollers
● Gentle transport for goods
● Modular and compact cassette design
● Easily fitted into most conveyor frames
● Can be used in routing, sorting or mergings
● Easy installation, easy maintenance
● Reduces the total cost of system deployment

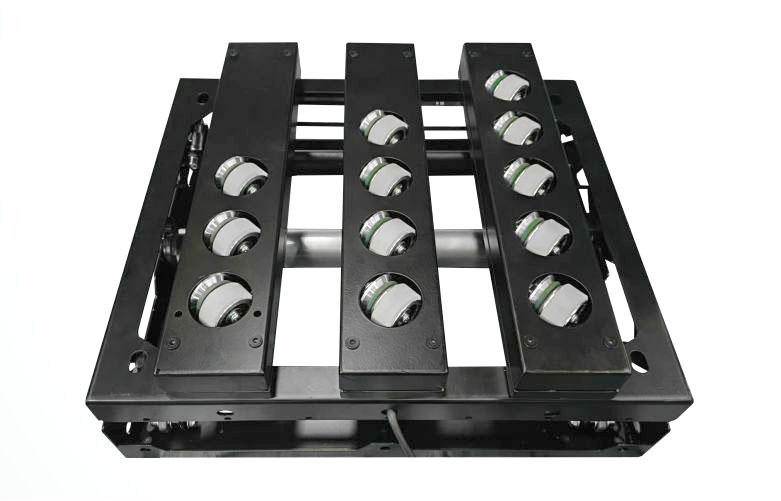

APOLLO Pop-up Diverter is used to redirect loads to a line set at an angle of 30 ° or 45 °. Wheels are lifted by means of 24V electric motor and then move products through the wheels, When wheels are not actived up, products will move forward by rollers. So it can be widely utilized in sorting applications, where diverting to multiple different lanes effectively creating a sortation conveyor.
| Technical Parameters | |||||
| Specifications | Model | Conveying Size(mm) | Suitable for width of docking conveyor | ||
| L | W | H | |||
| DF400 | 392 | 388 | 200 | 400 mm | |
| DF500 | 542 | 488 | 200 | 500 mm | |
| DF600 | 542 | 588 | 200 | 600 mm | |
| DF700 | 692 | 688 | 200 | 700 mm | |
| Divert angle | 30° / 45° | ||||
| Power for conveying | RollerDrive (DC 24V50W) | ||||
| Power for pop-up | RollerDrive (DC 24V50W) | ||||
| Speed | ≤ 90m / min | ||||
| Throughput | ≤ 2400 products / hour | ||||
| Load capacity | ≤ 50 kg / product | ||||
| Installation options | Hoist / Support leg | ||||
| Equipment color | Black (can customize other color) | ||||
